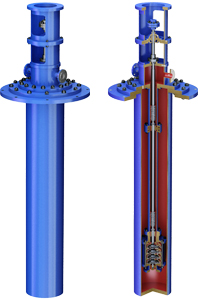

Superior design and manufacturing technology of Kian Tajhiz Vertical pump guarantees low noise, low vibration and high efficiency.
- Application
- Petroleum Refineries
- Petrochemical Industry
- Condensate and General Industrial Services
- Features
- Full compliance with API610 specifications
- Minimum labor required for installation and piping
- Minimum installation space
- High reliability
- Low NPSH performance
- Specification & Service Rages
- Capacities : To 5,500 m3/hr
- Heads : To 1,600 m
- Design pressures : 150kgf/CmG(2,130 PSIG)
- Impeller type : Enclosed
- Temperature range : -105C ~ 340C
- Application
- Petroleum Refineries
- Petrochemical industries
- Condensate and general industrial services
- Features
- Full compliance with API610 Specifications
- Minimumlabor required for installation and piping
- Minimum installation space
- High reliability
- Low NPSH performance
- Specification & Service Rages
- Capacities : To 5,500 m3/hr
- Heads : To 1,600 m
- Design pressures : 150kgf/cmG(2,130 PSIG)
- Impeller type : Enclosed
- Temperature range : -105c ~ 340c
- Application
- General Industries
- Power plant CWP
- Desalination of sea water
- Water intake and supply for water supply and drainage
- Water pumping and draining for agriculture
- Features
- Allows a dry bearing which requires no external flushing
- Smaller installation space than the vertical pump
- No priming is necessary since the impeller is in the water and suction is available even in deep places
- Satisfying customers requirements by miscellaneous options
- Specification & Service Rages
- Capacities : 500 To 100,000 m3/hr
- Heads : 2.2 To 11 m
- Design pressures : 150kgf/cmG(2,130 PSIG))
- Impeller type : Enclosed
- Temperature range : ~ 60c
- Application
- General Industries
- Power plant CWP
- Desalination of sea water
- Water intake and supply for water supply and drainage
- Water pumping and draining for agriculture
- Features
- Allows a dry bearing which requires no external flushing
- Smaller installation space than the vertical pump
- No priming is necessary since the impeller is in the water and suction is available even in deep places
- Satisfying customers requirements by miscellaneous options
- Specification & Service Rages
- Capacities : 500 To 100,000 m3/hr
- Heads : 2.2 To 11 m
- Design pressures : 150kgf/cmG(2,130 PSIG)
- Impeller type : Enclosed
- Temperature range : ~ 60c
- Application
- City water supply and industrial water supply
- General Industries
- Cooling water supply
- Agricultural irrigation
- circulating water
- Features
- A wide range of use and excellence operational characteristics utilizing cutting-edge technology
- Easy assembly and disassembly since the suction and discharge nozzle is attached to the lower casing and the casing is horizontally divided at the central line of the axis
- Specification & Service Rages
- Capacities : To 1,800 m3/hr
- Heads : To 90 m
- Design pressures : 4kgf/cmG(57 PSIG)
- Impeller type : Closed
- Temperature range : ~ 90c
- Application
- Emergency fire
- City water supply
- Pressure service
- Industrial water
- Features
- Featuring high efficiency by outstanding design and manufacture in multistage centrifugal pump with vertical type
- Minimum installation space
- Paralleled axis force assures safety and high efficiency in high speed rotation
- Static and dynamic balanced design allows less noise and low vibration
- Simple installation with no alignment required between pump and motor
- Specification & Service Rages
- Capacities : To 500 m3/hr
- Heads : To 200 m
- Design pressures : 10kgf/cmG(142 PSIG)
- Impeller type : Closed
- Temperature range : ~ 90c
